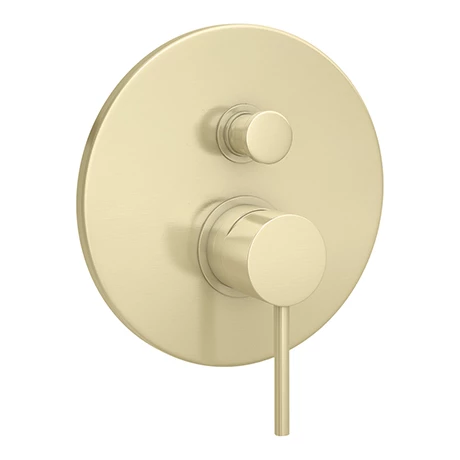

Arezzo Brushed Brass Round Concealed Manual Shower Valve with Diverter

The ideal solution for those updating their shower and bath on a budget, this sleek valve with a high performance diverter doesn’t compromise on style or function. Operate a bath with shower or a showering area with two outlets.

Product Details

• Diameter: 170mm
• Style: Modern
• Single Lever
• Concealed
• Round Back Plate
• Colour/Finish: Brushed Brass
• Material: Durable Brass
• Water Outlets: 2
• Operating pressure 0.5 bar up to 5 bar
• Recessed for streamlined appearance
• Non thermostatic mixer valve

• Ceramic disc control for smooth action and no drips
• Simple lever operation for flow and temperature
• Built-in diverter – Knob allows the user to divert the water between 2 outlets
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Flow Rates

0.5 Bar – 7.7 l/m
1 Bar – 10.6 l/m
2 Bar – 15.1 l/m
3 Bar – 18.6 l/m
4 Bar – 21.6 l/m
5 Bar – 24 l/m

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
